Fire Protection for High-Bay Warehouses & Logistics Hubs in J&K
Early Suppression Fast Response (ESFR) sprinkler grids, 100m optical beam smoke detection, heavy yard hydrant ring mains, and Fire NOC clearance along NH44 and Bari Brahmana logistics corridors.
Range Infrared Optical Beam Detection
100m Line-of-Sight High-Ceiling Smoke Sensing
In modern 10 to 14-meter high warehouses, standard spot smoke alarms on ceilings fail because hot air currents form a thermal cushion (stratification) that traps smoke halfway down. Optical beam detectors shoot an infrared light beam across up to 100 meters of open racking, detecting rising smoke plumes the moment they break the beam.
Specific Fire Hazards in J&K High-Bay Warehouses
Modern distribution centers along NH44 store high-density goods on vertical storage racks reaching 10 to 14 meters, creating vertical thermal chimneys.

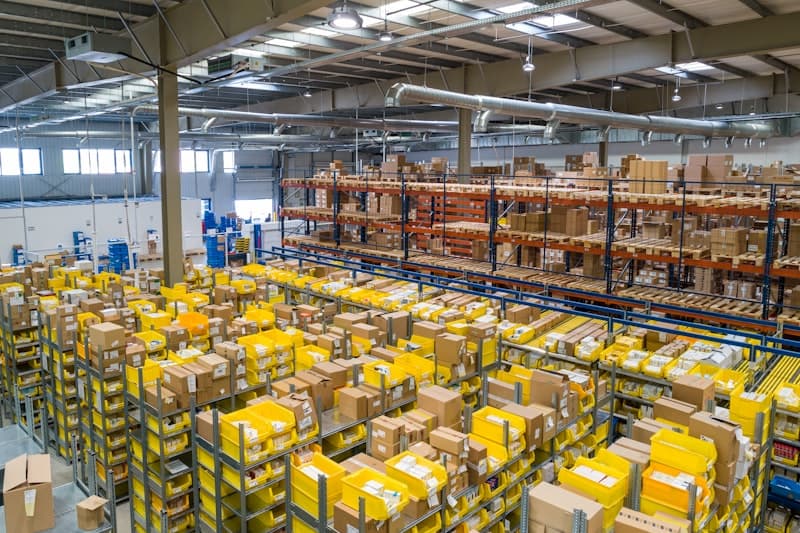

High-Bay Pallet Racks (Up to 14m Ceiling)
Hazard: Rapid vertical flame propagation fueled by combustible cardboard packaging and plastic shrink wrap.

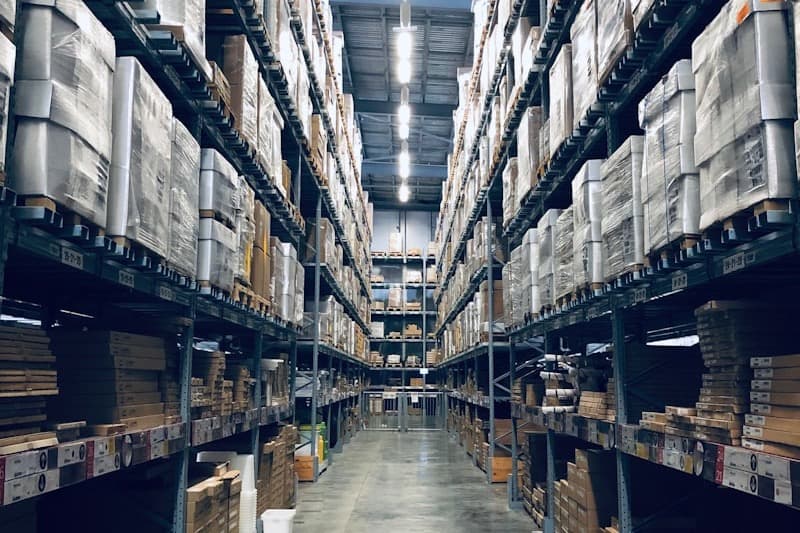

Large Open Storage Bays & Forklift Aisles
Hazard: Point smoke detectors fail to detect smoke at 12-meter ceiling heights due to thermal stratification.
Loading Docks & Heavy Truck Ingress Bays
Hazard: Diesel vehicle fuel leaks and exterior staging pallet fires threatening warehouse envelope.
Prescribed Fire Safety Systems for Warehouses & Depots
Engineered systems designed specifically to penetrate high-velocity thermal plumes and protect high-value inventory.
Early Suppression Fast Response (ESFR) Sprinklers
High-discharge K-25.2 / K-14.0 ESFR sprinkler network capable of suppressing rack fires without in-rack heads.
100-Meter Optical Beam Smoke Detection
Infrared projected beam transmitters and receivers covering high-ceiling bays up to 100 meters per pair.
Perimeter Yard Hydrant Ring Main Network
Heavy 150mm MS Class C underground ring main with double-headed landing valves and monitor nozzles.
Warehouse Fire Safety AMC
Quarterly pump churn runs, beam alignment checks, and prompt local on-ground breakdown dispatch.
Why Logistics Operators along NH44 Choose BSS Fire
We design heavy-duty warehouse fire systems that satisfy stringent industrial insurance underwriting requirements.
Our K-25.2 ceiling ESFR designs eliminate costly in-rack piping, preventing forklift damage and maximizing rack flexibility.
We fabricate 150mm Class C welded and grooved ring mains tested to 15 kg/cm² pressure for 24 hours.
We deliver hydraulic calculation curves and CAD layout dossiers to fast-track J&K Fire Services NOC approval.
We stock replacement ESFR heads, grooved couplings, and landing valves locally in Jammu for zero downtime.
Sector Life Safety & Fire NOC Compliance Benchmarks
Clause-by-clause statutory requirements enforced across Jammu & Kashmir.
- Minimum 150,000 to 250,000 Liter underground fire water storage reservoir
- Automatic 2850 LPM main electric pump + standby diesel engine pump + jockey pump
- ESFR sprinkler grid designed for minimum 3.5 bar pressure at most remote head
- Projected optical beam detectors on high-ceiling storage bays
- Perimeter yard hydrants spaced at maximum 30m intervals around perimeter
- Annual Form B Fire NOC Certificate renewal with J&K Fire Services
Common Fire Safety Questions for Warehouses & Logistics Distribution Centers
Practical answers for facility managers and plant engineers in J&K.
Why are standard point smoke detectors ineffective in high-ceiling warehouses?
In warehouses with ceilings above 8 meters, rising smoke cools and spreads horizontally before reaching the ceiling — a phenomenon known as thermal stratification. Standard point smoke detectors never trip. Optical beam detectors project an infrared beam across 100 meters, detecting smoke anywhere in the high-bay air space.
What is the advantage of ESFR sprinklers over in-rack sprinklers?
In-rack sprinklers run delicate piping inside storage racks where forklifts frequently strike and break them, causing massive water leaks. ESFR (Early Suppression Fast Response) sprinklers are mounted entirely on the ceiling, discharging heavy high-momentum water droplets that penetrate heat plumes down to lower rack tiers.
What fire water tank size is legally required for a logistics warehouse in J&K?
Under NBC 2016 Part 4 Table 7 (Group H Storage), a high-bay warehouse typically requires a dedicated underground static fire water storage reservoir of 150,000 to 250,000 Liters, paired with a 2280 or 2850 LPM fire pump set.
Protect High-Bay Logistics Facilities with ESFR & Beam Systems
Connect with our Jammu engineering team on WhatsApp for warehouse hydraulic designs, ESFR calculations, and turnkey installations.
